Alert for fund-raising for development costs.
Hey everyone its been a long time people have been asking for schematics for ps3 superslims and slim and being annoyed by limited documentation i have finally decided to do it myself .
A year and tremendous effort has been poured into this project. It is now in near-completion phase, and finally a sneak peak is being shared.
however due to limited data regarding layouts and mappeds rails this projected will solely focus on known power and data lines to have factory nets rest will only let you see continuity across either board. debunking the interboard connections.
However due to limited documentations regarding cxd2999 and d5305 i am now facing the need to gather sacrificial motherboards and bga machines which i can't currently buy due to finacial strain from leaving my job and dedicating time to this project i am being faced with the need to ask for a fundraiser as well as volunters for testing and send scans of bgas design of these processors
Hope you all will make this project go live.

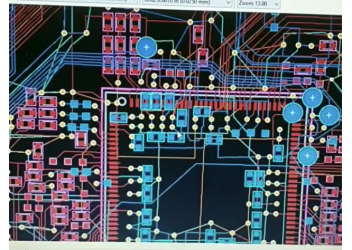

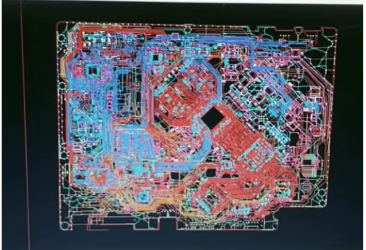

Boardview of semi completed pqx-001 populated
