Btw, it would be easier to get this info by letting a message in the "System Manager", saying something like "If you have a NPX eMMC please confirm at.."
By now is better to display the motherboard name as "unknown" because we need the user to open the PS3 to read it and tell the explicit motherboard name in the report
You know, if we give an option to the user where the only posible results are "yes" or "no" there is going to be people that is going to choose one of them without really knowing
In other words... displaying it as "unknown" prevents the false reports
I wouldn't give too much relevance to the HDD letter, sometimes I tend to mix cases lol. But all of them are 40xx, NPXs too.
I was asking just incase someone else is reading and wants to report her/his info, you forgot to tell the MPX-001 you reported had a NOR flash type (but you told to me in private), and didnt mentioned the complete PS3 model with the suffix A, B or C, this details are needed in the report to be sure
But I do have something interesting, a dead NOR RTX and a GLOD NOR PPX. I know it's not the best result, but I want to know what you have to say about it,
@M4j0r @sandungas. There's a method to get the info we need?
Thats another 2 more unknowns
Yes, the platformid can be seen in all syscon EEPROM dumps... actually the standard syscon dumps from superslim PS3 models stars with the platformid in human readable format
The old mullion syscons had a command named "hversion" to read it but they removed it in sherwood syscons like yours... so you need to read it from the EEPROM in raw either by using the python script that does a syscon dump automatically.... or by this trick i mentioned
https://www.psx-place.com/threads/syscon-fan-settings-coordinate-graphs.31188/page-4#post-292692
Basically, you just need to use the "r" command (to read) 6 bytes from offset 1... and the syscon should replay with "Cok
Xxx"
In other words, the command ">r 1 6" is reading the bytes 2nd, 3rd, 4th, 5th, 6th, 7th
This is a sample of how it starts the syscon dump of a REX-001(eMMC)
Code:
Offset(h) 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00000000 D8 43 6F 6B 52 34 30 00 00 51 60 40 FF FF FF FF ØCokR40..Q`.ÿÿÿÿ
00000010 01 4E 00 FF FF 22 03 BC 2C FF FF FF FF FF FF FF .N.ÿÿ".¼,ÿÿÿÿÿÿÿ
00000020 00 02 00 00 03 C8 78 FF FF FF FF 00 FF FF FF FF .....Èxÿÿÿÿ.ÿÿÿÿ
About the other two models MSX/NPX eMMC, I think those could be some asian releases, because I never saw those mobos/models. Hard stuff to find, maybe in Japan?

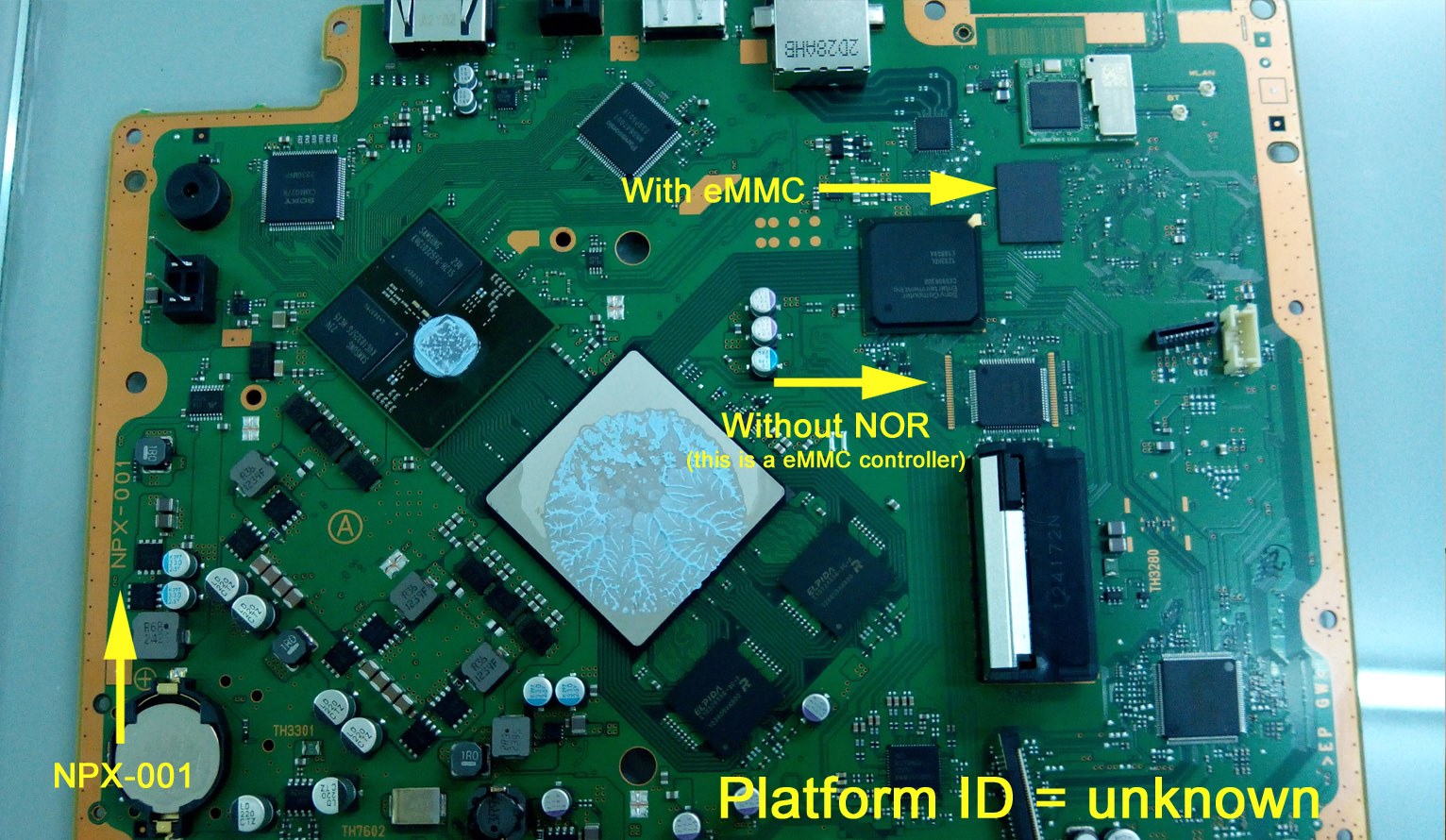

The NPX-001(eMMC) seems to be unusual, but i found a photo of it in google
The PSX-001(eMMC) is speculation, we never found a photo of it
